Product Overview

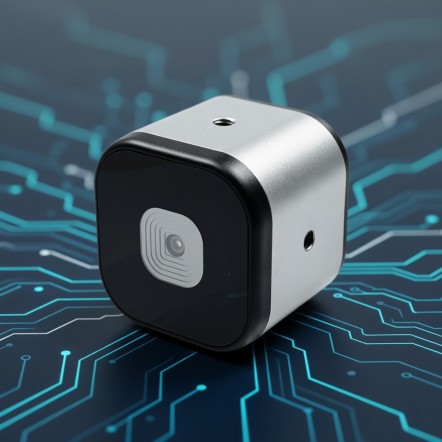

Lub OV9281 Lub Koob Yees Duab Module yog qhov compact, siab -ceev USB kev daws teeb meem tsim los rau lub tshuab tsis pom kev, kev tshuaj xyuas kev lag luam, neeg hlau, thiab AI-raws li lub zeem muag. Ua nyob ib ncig ntawm lub ntiaj teb lub kaw lus monochrome, lub koob yees duab ov9281 lub ntiaj teb kaw lub koob yees duab no tshem tawm cov lus tsa suab distortion thiab dov artifacts, ua rau nws zoo tagnrho rau kev ceev - txav khoom ntes. Nrog kev txhawb nqa rau tus ncej siab txog li 120fps thiab ruaj khov USB 2.0 UVC kev sib txuas, lub module xa cov kev ua tau zoo hauv kev xav tau ib puag ncig kev tshaj lij thaum tseem yooj yim rau kev sib koom ua ke thoob plaws cov haujlwm tseem ceeb.
Cov yam ntxwv tseem ceeb
Ntiaj teb Shutter Imaging
Nthuav ceev- txav scenes yam tsis muaj suab nrov plooj lossis cuam tshuam, ua kom cov duab meej meej rau kev ua haujlwm tsis pom kev.
Siab -Speed Frame Rate
Txhawb nqa mus txog 120fps ntawm HD daws teeb meem, ua kom muaj tseeb - sijhawm taug qab thiab siab - ceev cov ntaub ntawv tau txais.
Monochrome Sensor Tsim
Optimized rau qhov sib piv, pom ntug, thiab teeb tsa - teeb daim ntawv thov uas tsis tas yuav tsum muaj xim.
Plug-thiab-Ua si USB interface
Tag nrho UVC- ua raws li USB 2.0, tso cai rau kev xa tawm sai yam tsis muaj kev tsav tsheb ntxiv.
Wide Field of View Options
Txhawb ntau yam ruaj khov - tsom iav xaiv, suav nrog dav - lub kaum sab xis teeb tsa mus txog 120℃FOV.
Industrial Temperature Stability
Tuav cov duab zoo ib yam thoob plaws qhov kev ua haujlwm kub ntau rau kev siv hauv kev lag luam.
Technical Specifications
| Parameter | Specification |
|---|---|
| Duab Sensor | OV9281 CMOS, 1/4 nti, Monochrome |
| Hom Shutter | Ntiaj teb no Shutter |
| Kev daws teeb meem | 1280 × 800 |
| Pixel Loj | 3.0 μm × 3.0 μm |
| Ncej tus nqi siab tshaj | 120fps @ 1280 × 800 |
| Tso zis hom | RAW / MJPEG |
| Interface | USB 2.0 |
| Lens Mount | Kho kom haum |
| Field of View | Mus txog 120℃(yeem) |
| Fais fab mov | DC 5 V |
| Ua haujlwm kub | -30℃rau +80 degree |
| Module Loj | 38 × 38 × 8.5 hli |
Daim ntawv thov Scenario
Zoo tagnrho rau:
-
Muaj tshuab pom kev thiab tshuaj xyuas tshuab
-
Robotics tsis pom kev thiab taug qab kev txav
-
AI lees paub thiab ntug kev suav cov khoom siv
-
Barcode scanning thiab OCR systems
-
High -cov khoom siv ceev ceev thiab cov khoom siv automation
Vim li cas thiaj xaiv Qhov Module?
1.Qhov tseeb thoob ntiaj teb shutter architecture rau distortion- dawb siab - duab nrawm
2.High ncej tus nqi txhawb nqa zoo tagnrho rau kev tsom xam thiab taug qab
3.Standard UVC USB interface rau kev sib txuas ceev ceev
4.Compact thiab proven hardware tsim haum rau embedded systems
5.Reliable industrial- qib kev ua tau zoo raws li qhov xav tau
Lub koob yees duab ov9281 ntiaj teb kaw lub koob yees duab sib txuas ceev, qhov tseeb, thiab kev sib koom ua ke yooj yim hauv daim ntawv cog lus, ua rau nws yog qhov kev xaiv zoo rau kev pom kev tshaj lij uas cov lus tsa suab precision thiab ruaj khov yog qhov tseem ceeb.
Tuam txhab Taw Qhia
cov tswv cuab nquag
xyoo kev
xwm txheej & kev sib tw
International Certifications
Kev kho kom haum

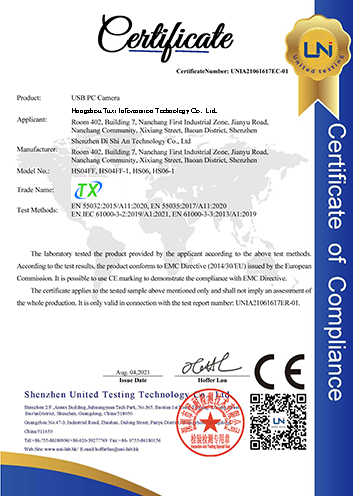

Peb Daim Ntawv Pov Thawj

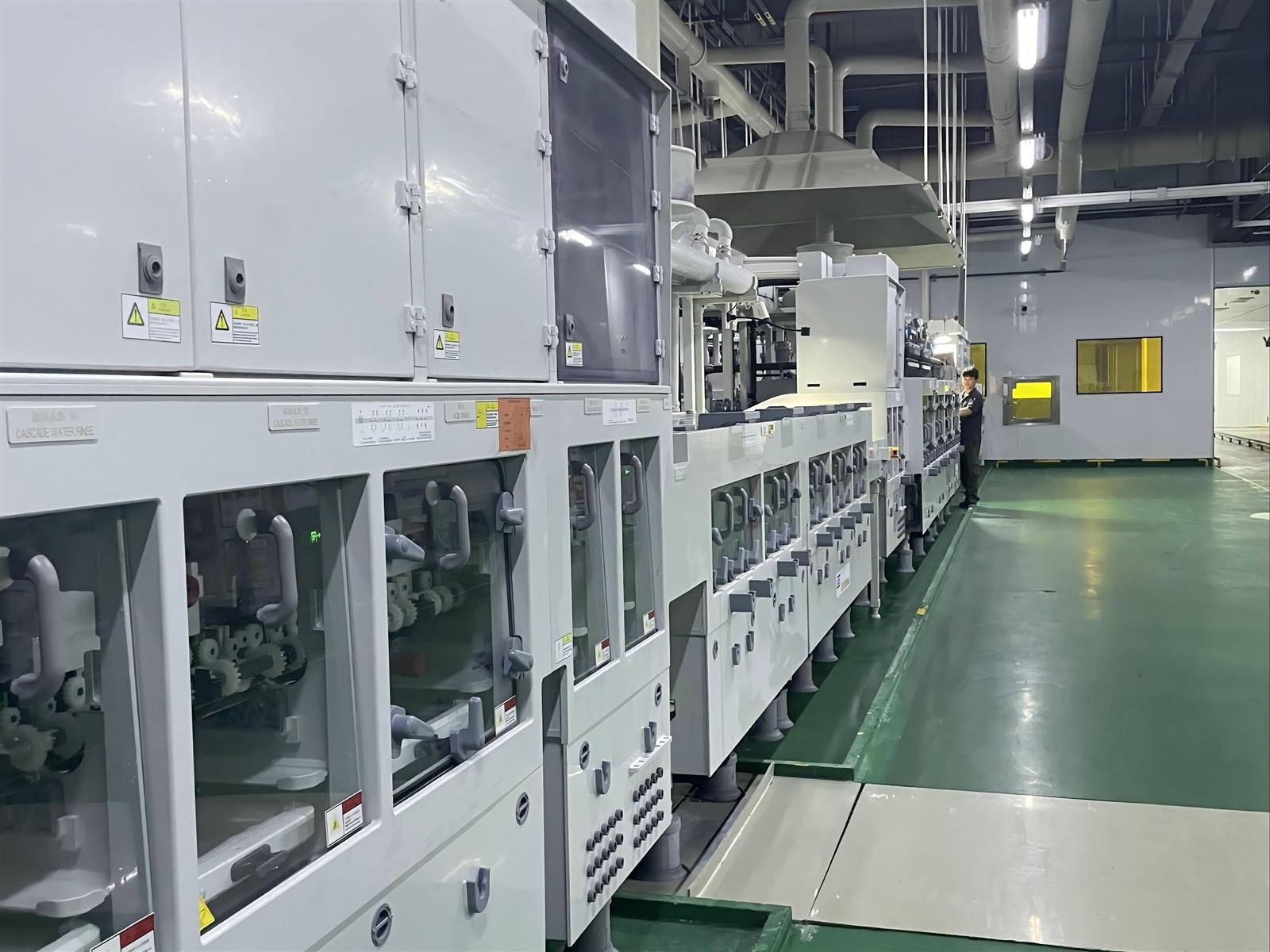

Peb lub Hoobkas
FAQ
Q: Koj puas yog lub tuam txhab lag luam lossis chaw tsim khoom?
A: Peb yog cov chaw tsim khoom nrog 15 xyoo ntawm kev txhim kho thiab tsim kev paub. Peb cov kev tswj xyuas kev ua tau zoo ua kom ntseeg tau cov txheej txheem thev naus laus zis thiab cov khoom zoo ib yam.
Q: Koj puas tuaj yeem muab kev pabcuam tsim qauv?
A: Yog lawm. Rau kev txiav txim ntau, peb muab OEM & ODM customization kom tau raws li koj cov kev xav tau tshwj xeeb. Peb cov kws tshaj lij pab neeg muab kev txhawb nqa tag nrho ua ntej, thaum, thiab tom qab muag.
Q: Koj lub sijhawm khoom xa tuaj yog dab tsi?
A: Feem ntau, peb lub sijhawm ua haujlwm yog li 2 lub lis piam, nyob ntawm qhov kev txiav txim kom muaj nuj nqis.
Q: Koj puas muab cov qauv? Lawv puas yog dawb?
A: Yog, peb muab cov qauv dawb rau feem ntau ntawm peb cov khoom. Thov hu rau peb kom paub meej tias muaj cov qauv.
Q: Kuv tuaj yeem tau txais cov lus hais li cas?
A: Cia li qhia rau peb paub qhov loj me, specifications, thiab kom muaj nuj nqis ntawm cov khoom koj xav tau, thiab peb yuav xa koj cov nqi zoo tshaj tam sim ntawd.
Q: Koj txais txoj kev them nyiaj dab tsi?
A: Koj tuaj yeem them nyiaj los ntawm Kev Them Nyiaj (T / T), Lub txhab nyiaj hloov pauv, Western Union, PayPal, lossis Alibaba Kev Them Nyiaj Zoo.
Q: Yuav ua li cas txog tus nqi shipping?
A: Rau kev txiav txim me me, peb xav kom xa khoom xa tuaj. Rau kev txiav txim loj, peb muab hiav txwv lossis huab cua freight, thiab tuaj yeem hais raws li cov khoom xws li FOB, CIF, CNF lossis EXW, thiab lwm yam. Koj tuaj yeem xaiv siv koj tus kheej xa mus lossis peb li.
Q: Kuv tuaj yeem tau txais cov lus hais li cas?
A: Cia li qhia rau peb paub qhov loj me, specifications, thiab kom muaj nuj nqis ntawm cov khoom koj xav tau, thiab peb yuav xa koj cov nqi zoo tshaj tam sim ntawd.
Cim npe nrov: ov9281 ntiaj teb no shutter koob yees duab, Tuam Tshoj ov9281 ntiaj teb no shutter koob yees duab manufacturers
